| 外形尺寸: |
9930,9955,10000,10025,10130,10155,10200,10225,10325,10350,10395,10420×2500,2550×3450 (mm) |
貨箱尺寸: |
×× (mm) |
| 總質量: |
25000 |
載質量利用系數: |
|
| 整備質量: |
14990,15280 |
額定載質量: |
|
| 掛車質量: |
|
半掛鞍座: |
|
| 駕駛室: |
|
前排乘客: |
2,3 |
| 接近角/離去角: |
19/24,19/22,19/18,19/15 |
前懸/后懸: |
1430/1200,1430/1175,1430/1750,1430/1725,1430/1750,1430/1725,1430/1900,1430/1875,1430/2350,1430/2325,1500/2470,1500/2445,1430/2450,1430/2425,1430/3210,1430/3185,1500/1830,1500/1805,1500/2280,1500/2255,1500/2380,1500/2355,1500/3140,1500/3115,1500/3080,1500/3020,1430/2470,1500/1680,1430/1540,1430/2000,1430/1700,1430/2755 |
| 軸荷: |
7000/18000(二軸組) |
軸距: |
3200+1350,3175+1400,3800+1350,3775+1400,4100+1350,4075+1400,4300+1350,4275+1400,4600+1350,4575+1400,4900+1350,4875+1400,5200+1350,5175+1400,5800+1350,5775+1400,5740+1470,5800+1470 |
| 軸數: |
3 |
最高車速: |
80,89,110 |
| 油耗: |
32.44,32.44,32.44,31.93,32.2,37.2,32.2,32.2,32.2 |
彈簧片數: |
11/12,11/10,10/12,4/12,4/5,3/10,3/4,2/4,4/-,3/-,2/-,4/-/-,3/-/-,2/-/- |
| 輪胎數: |
10 |
輪胎規格: |
315/80R22.5 16PR,295/80R22.5,12R22.5,12.00R20 16PR,11.00R20 |
| 前輪距: |
2015,2035,2060 |
后輪距: |
1830/1830,1850/1850,1870/1870 |
| 制動前: |
|
制動后: |
|
| 制操前: |
|
制操后: |
|
| 轉向形式: |
|
啟動方式: |
|
| Vin車輛識別代碼: |
|

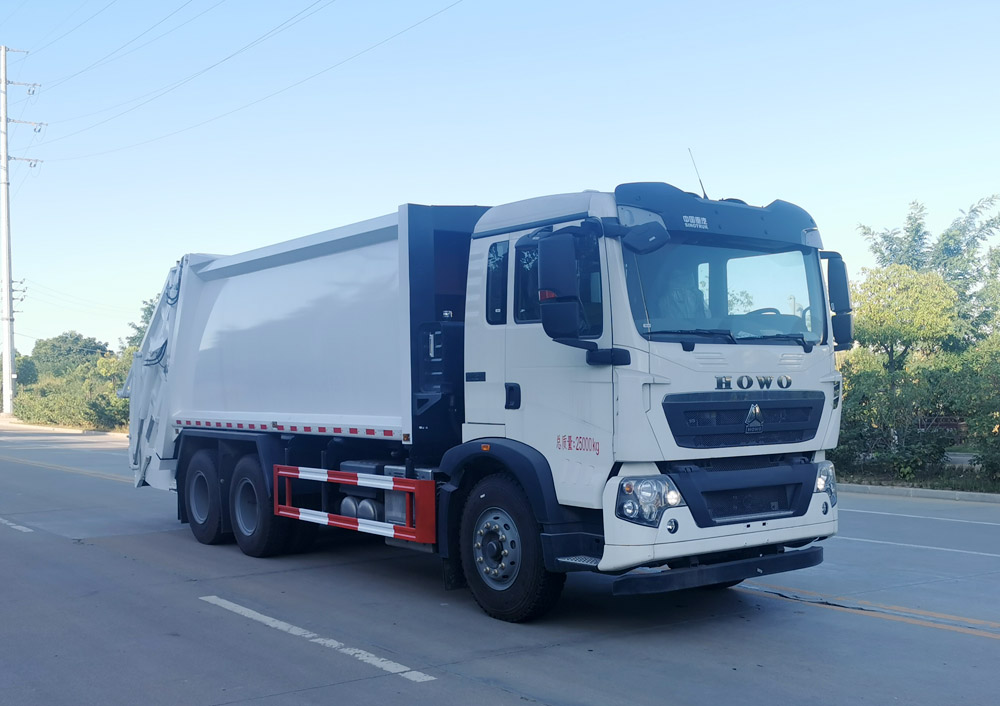

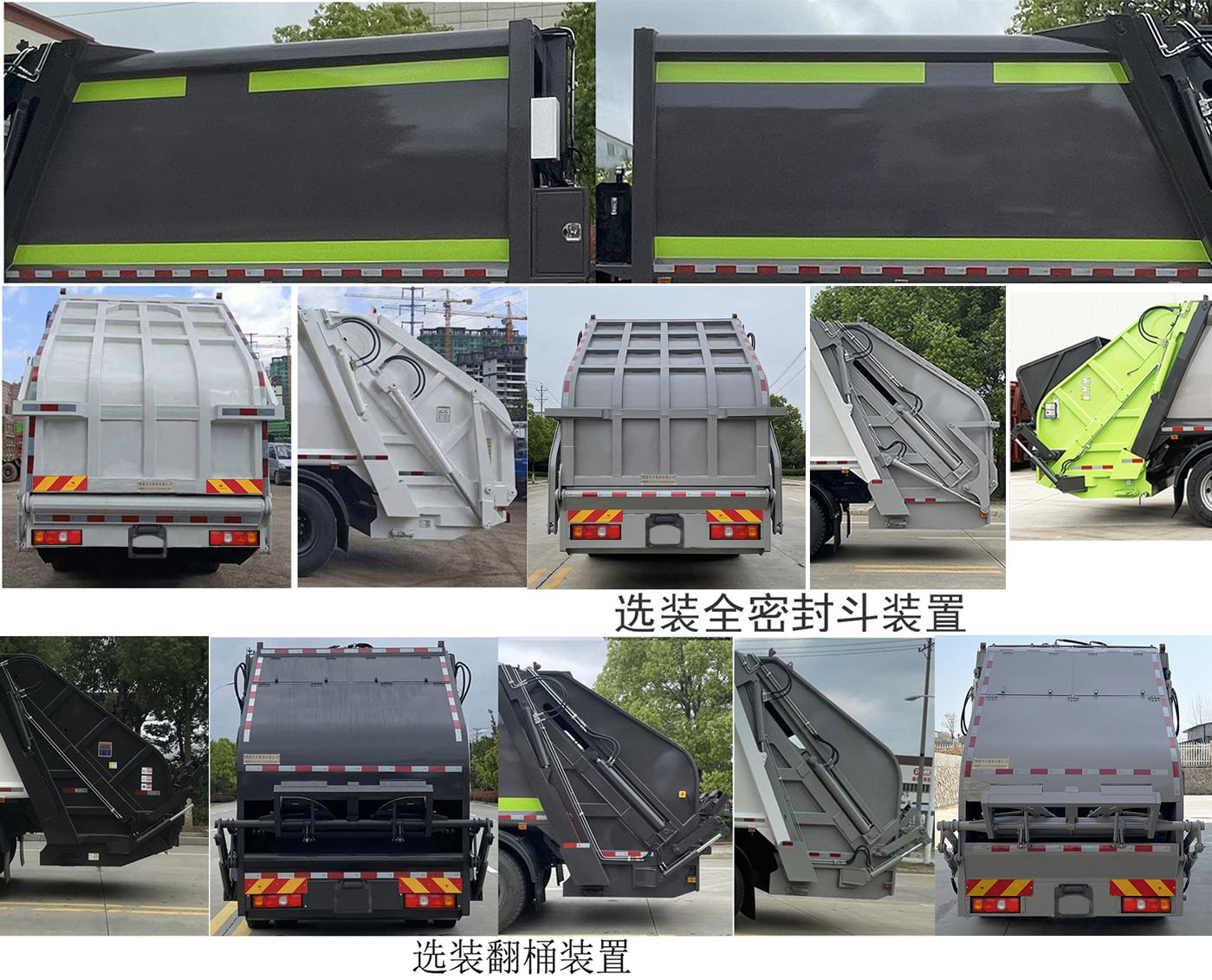

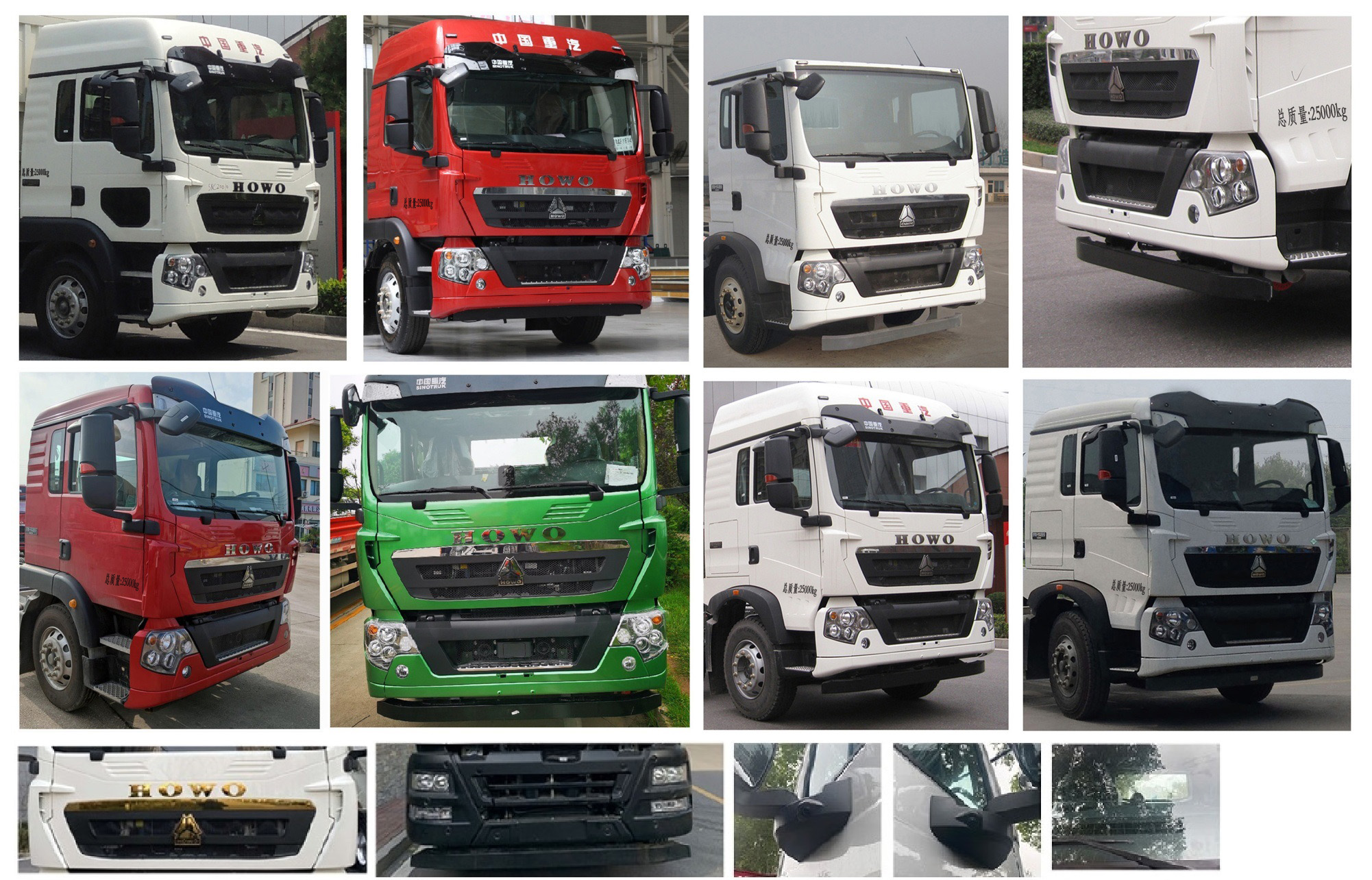

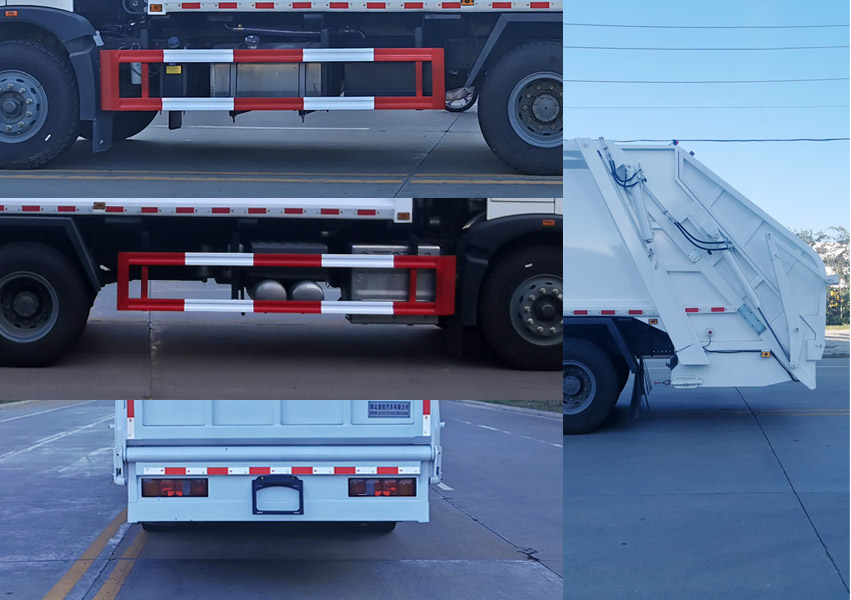

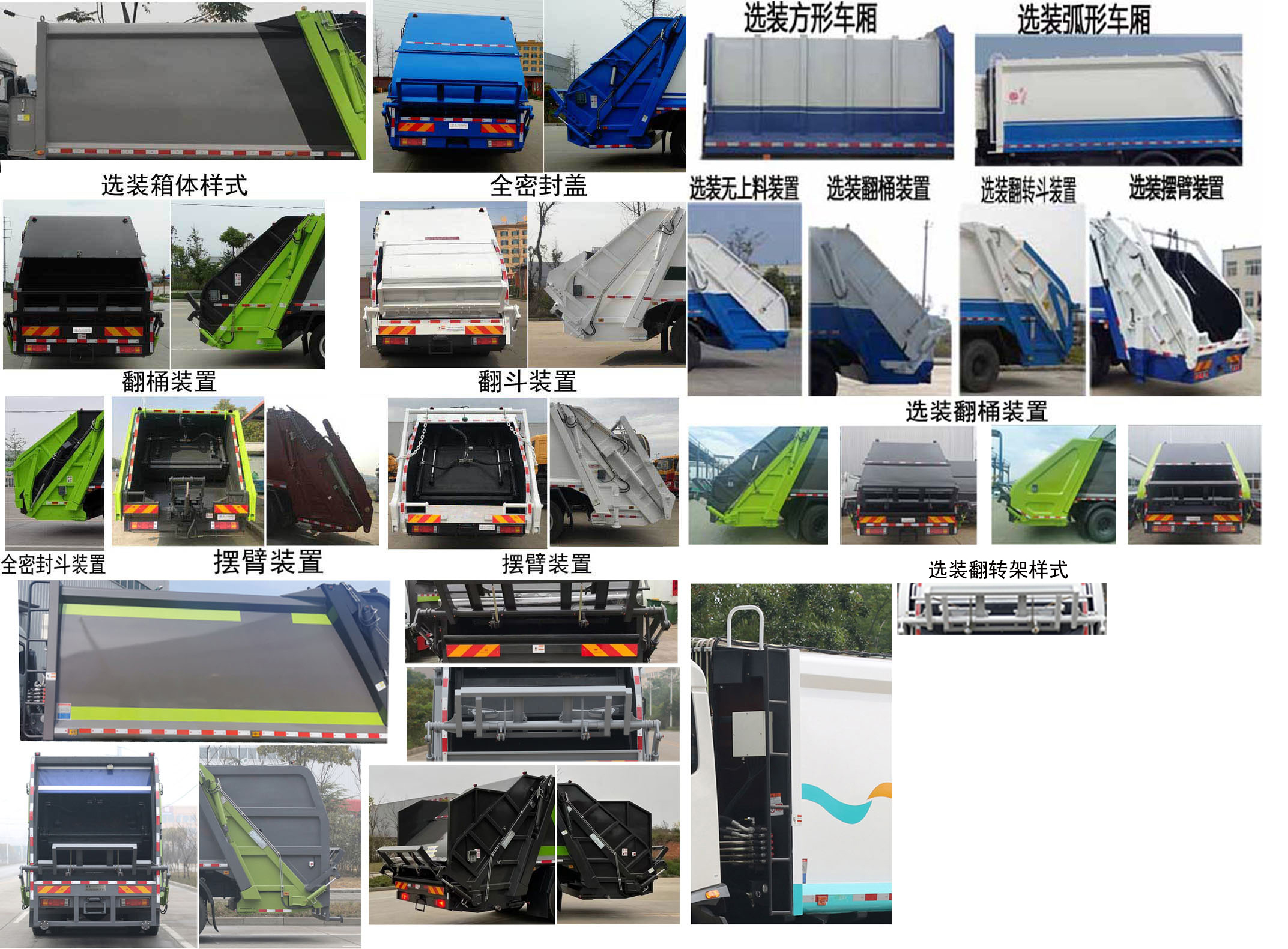

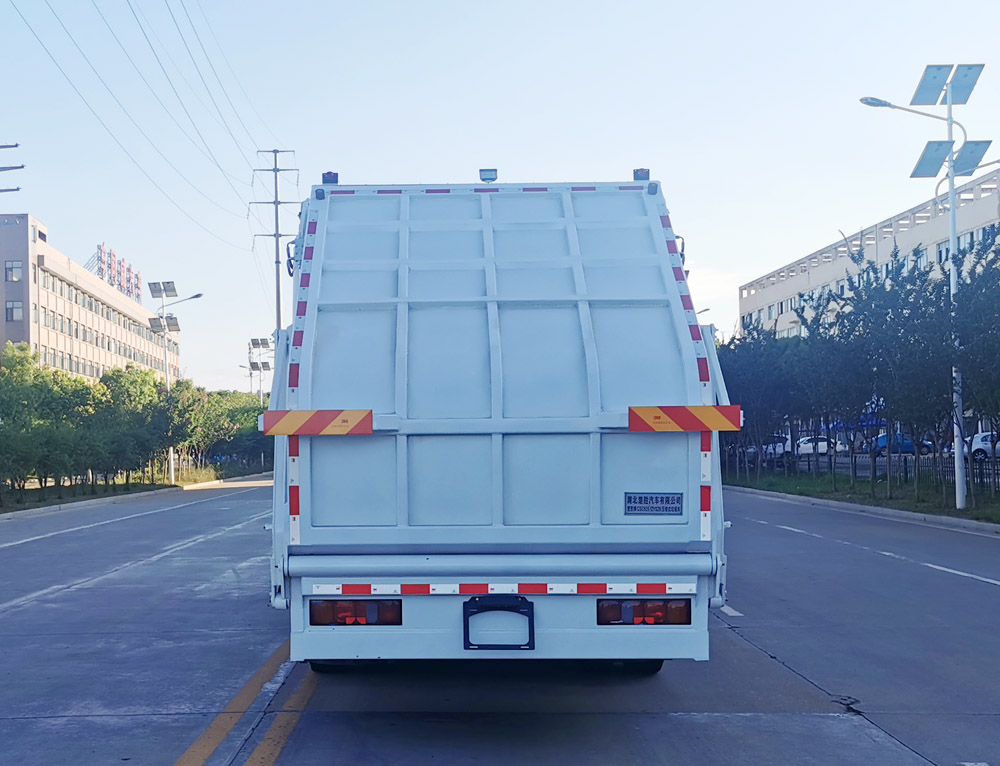

| 1、該車主要專用裝置由箱體、壓縮系統組成,用于垃圾的收集與清運。側防護材料為Q235,螺栓連接;后防護由專用裝置代替,下邊緣離地高500mm。僅采用軸距4300+1350mm, 4275+1400mm。2、該車可選裝方形或弧形箱體,選裝全密封蓋裝置,選裝后部工作裝置。選裝爬梯。選裝后翻轉架樣式。選裝后部工作裝置時,整車長度 /前懸/軸距 /后伸/整備質量對應關系為:①無翻轉機構:9930/1430/4300+1350/-;9955/1430/4275+1400/-;10000/1500/4300+1350/-;10025/1500/4275+1400/-;整備質量14990kg;②全密封斗裝置,擺臂裝置: 10130/1430/4300+1350/200;10200/1500/4300+1350/200;10155/1430/4275+1400/200;10225/1500/4275+1400/200;整備質量15280kg;③翻桶裝置、半密封裝置: 10325/1430/4300+1350/395;10395/1500/4300+1350/395;10350/1430/4275+1400/395;10420/1500/4275+1400/395;整備質量為15280kg。3、隨底盤選裝駕駛室。安裝有具有衛星定位功能的行駛記錄儀;發動機/凈功率(kW)/油耗值(L/100km)對應關系為:MC07.34-60/248/32.44,MC07.27-60/199/32.44,MC07.31-60/225/32.44,MC11.40-60/294/ 31.93,WP8.350E61/252/32.2,WP10H400E62/289/37.2,MC09.35-60/257/32.2,MC09.38-60/276/32.2,MC09.35B-60/257/32.2。ABS系統控制器生產企業/型號為威伯科(上海)管理有限公司/4460046300;選裝限速裝置,最高車速(km/h)89。選裝ETC車載裝置。選裝控制盒及液壓油箱安裝位置及樣式. |
